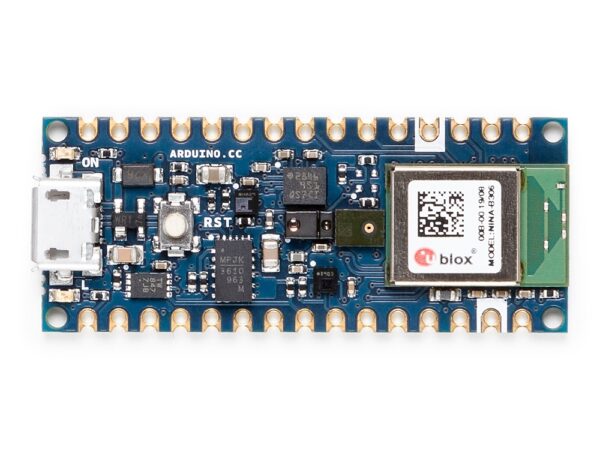

Arduino Nano 33 BLE Sense 物聯網藍芽傳感器開發板 支援 BLE5.0 內建多種感測器

描述

Arduino Nano 33 BLE Sense 物聯網藍芽傳感器開發板 Arduino.cc 台灣正式代理 支援 BLE5.0 內建多種感測器 板載傳感器：數字麥克風，6軸加速度計，壓力濕度，溫度，手勢識別

Arduino Nano 33 BLE Sense 圍繞 NINA B306 模組構建，用於BLE和Bluetooth 5通信。Nano BLE Sense基於包含強大功能Cortex M4F的Nordic nRF52840處理器。該板具有一組豐富的傳感器，可用於創建創新且高度交互的設計。它具有與Arduino IDE在線和離線完全兼容的架構。該板還具有9軸慣性測量單元（IMU），溫度，壓力，濕度，光線，顏色甚至手勢傳感器。甚至可以使用麥克風，並且可以通過專門的函數庫進行管理。 Arduino Nano 33 BLE Sense 降低的功耗和Nano尺寸因素為各種應用打開了電路板的大門。這允許需要可近距離與其他設備通信的可穿戴設備和基於手勢的項目。得益於多協議BT 5.0無線電，Arduino Nano 33 BLE Sense是交互式自動化項目的理想選擇。

• 無線模組–基於Nordic nRF52480 Arm Cortex-M4F單片機@ 64MHz, 1MB Flash, 256KB RAM以及BLE5.0的U-blox NINA B306 模組
• 拓展–2x 15-pin 拓展口包含GPIO, SPI, I2C, USART, PWM, ADC, DAC, 復位, 以及電源腳(+5V, +3.3V, GND, Vin, AREF, …)
• 傳感器–9軸加速度計，陀螺儀，磁力計,溫度，壓力，濕度，光線，顏色，手勢識別以及數字麥克風
• 硬件加密模塊– Microchip ATECC608A 安全加密晶片
• 調試–通過micro USB 口, 也支持6-pin SWD接口
• 尺寸–與原來的Arduino Nano兼容

板載的額外的傳感器使得這板子支持自動化應用和互動式可穿戴設備應用。

硬體特色

• 微型：UBLOX NINA B306（北歐nRF52）
• 安全性：ECC608加密晶片
• 時鐘：64MHz
• 閃存：1MB
• 內存：256KB
• 電路電壓3.3V
• I / O：8個模擬引腳，14個數字引腳
• 接口：1 UART // 1 SPI // 1 I ² C
• 板載傳感器：數字麥克風，6軸加速度計，壓力濕度，溫度，手勢識別。
• 尺寸：45 x 25毫米

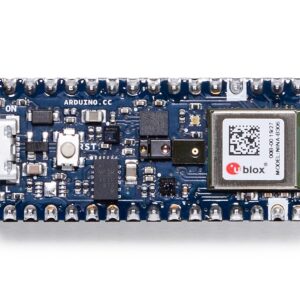

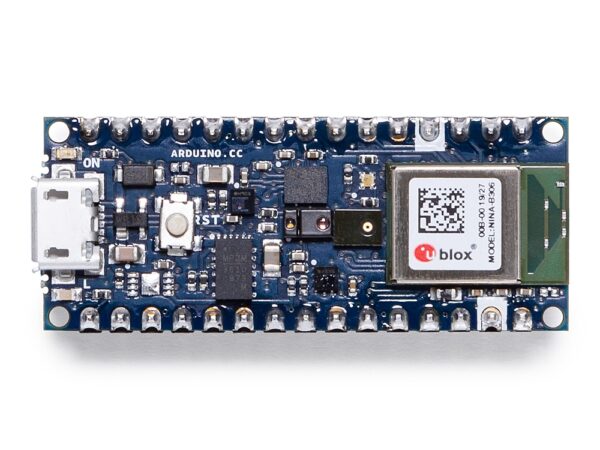

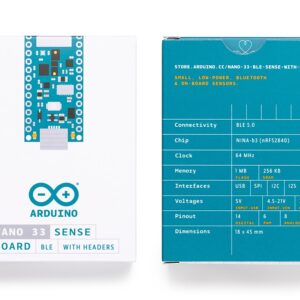

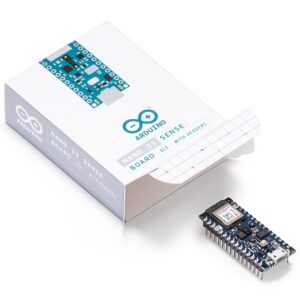

ARDUINO NANO 33 BLE SENSE WITH HEADERS

This compact and reliable Nano board is built around the NINA B306 module for BLE and Bluetooth 5 communication; the module is based on Nordic nRF 52840 processor that contains a powerful Cortex M4F and the board has a rich set of sensors that allow the creation of innovative and highly interactive designs.

Its architecture, fully compatible with Arduino IDE Online and Offline, has a 9 axis Inertial Measurement Unit (IMU), temperature, pressure, humidity, light, color and even gestures sensors and a microphone that are managed through our specialised libraries. Its reduced power consumption, compared to other same size boards, together with the Nano form factor opens up a wide range of applications.

This allows the design of wearable devices and gesture based projects that need to communicate to other devices at a close range. Arduino Nano 33 BLE Sense is ideal for interactive automation projects thanks to the multiprotocol BT 5.0 radio.

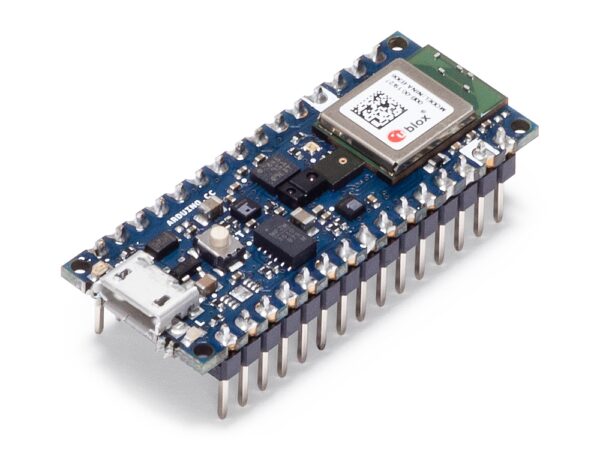

With headers mounted.

• The Bluetooth is managed by a NINA B306 module.
• The IMU is a LSM9DS1 and it is managed through I2C.
• The LPS22HB reads barometric pressure and environmental temperature.
• The HTS221 senses relative humidity.
• The APDS-9960 is a digital proximity, ambient light, RGB and gesture sensor.
• The MP34DT05 is the digital microphone

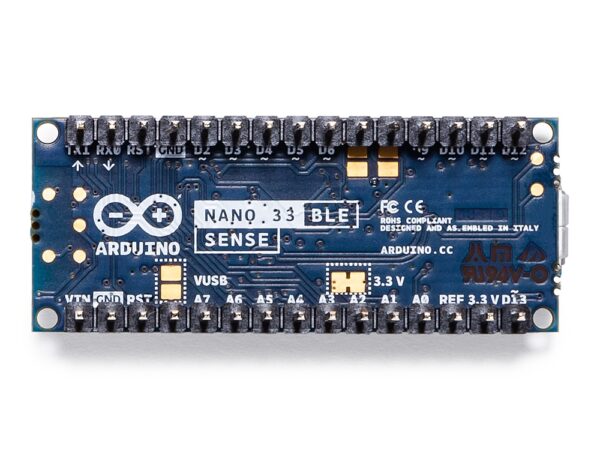

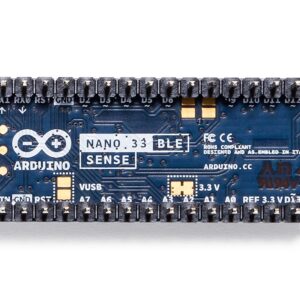

The board has a two 15 pins connectors – one on each side -,  pin to pin compatible with the original Arduino Nano.
