ToF 10-180Cm 鐳射光測距感測器模組TOF10120距離傳感器 UART & I2C雙輸出

描述

ToF 10-180Cm 鐳射光測距感測器模組TOF10120距離傳感器 UART & I2C雙輸出

ToF 10-180Cm 鐳射光測距感測器模組 距離傳感器可為高速自動對焦（AF）提供準確且可重複的遠距離測量。創新的定時關閉技術使性能與物體反射率無關。TOF10120的飛行時間感測技術是通過採用低成本標準CMOS工藝的原始SPAD（單光子雪崩二極管）實現的。通過特殊的光學封裝設計，它可以實現精確的測距結果，對環境光的更高抵抗力以及對蓋玻片光學串擾的更好的耐用性。

特色

• 940nm 雷射激光
• 小型陶瓷封裝（20×13.2×2.0mm）
• 在室內，以5％的精度在1.8m以內的遠距離絕對距離測量
• 報告範圍與目標反射率無關
• 在高紅外環境光下工作
• 先進的光學串擾補償
• 高速範圍最大30ms
• 兼容標準回流焊
• 單電源

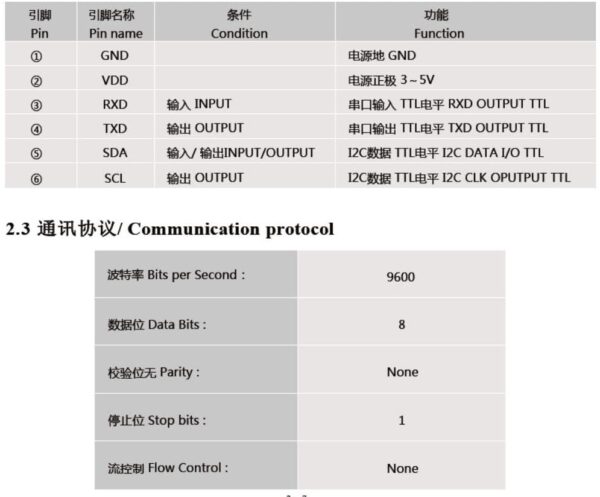

• 用於設備控制和數據傳輸的UART I2C接口

100-1800mm UART I2C Output TOF10120 Laser Distance Sensor Laser Rangefinder Ranging Sensor Time of Flight TOF 10120 Laser Flight Distance Measurement Social Distancing Sensor

• TOF10120 range sensor provides accurate and repeatable long range distance measurement for high-speed autofocus (AF). The innovative time-offlight technology allows performance independent of object reflectance.
• TOF10120’s time-of-flight sensing technology is realized by Sharp’s original SPAD (Single Photon Avalanche Diodes ) using low-cost standard CMOS process. It enables accurate ranging result, higher immunity to ambient light and better robustness to cover-glass optical cross-talk by special optical package design.
• Applications: High-speed AF; Continuous AF for video; User detection for Personal Computers/Laptops/Tablets; Robotics (obstacle detection); White goods hand detection in automatic (faucets, refrigerator).
• Single power supply; UART I2C interface for device control and data transfer; Lead-free, RoHS compliant.
