SparkFun VL53L5CX 迷你 ToF 成像儀模組 具 QWIIC 快接端子

原始價格:NT$1,300。目前價格:NT$1,030。 (未稅)

Availability: 20 件庫存
Compare

描述

SparkFun VL53L5CX 迷你 ToF 成像儀模組 具 QWIIC 快接端子

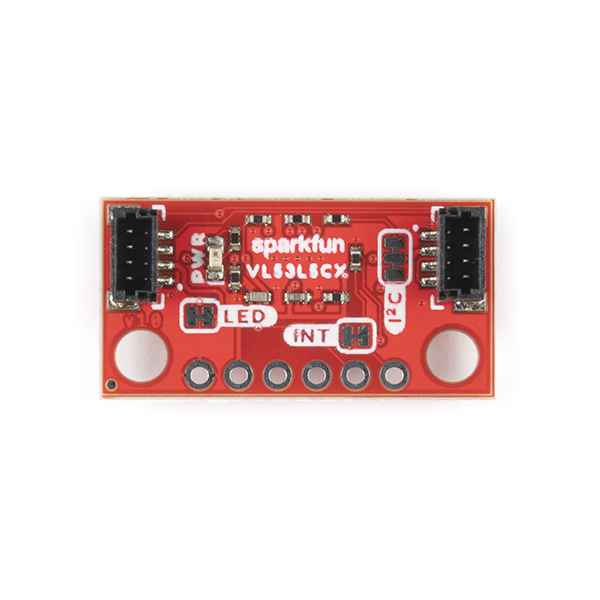

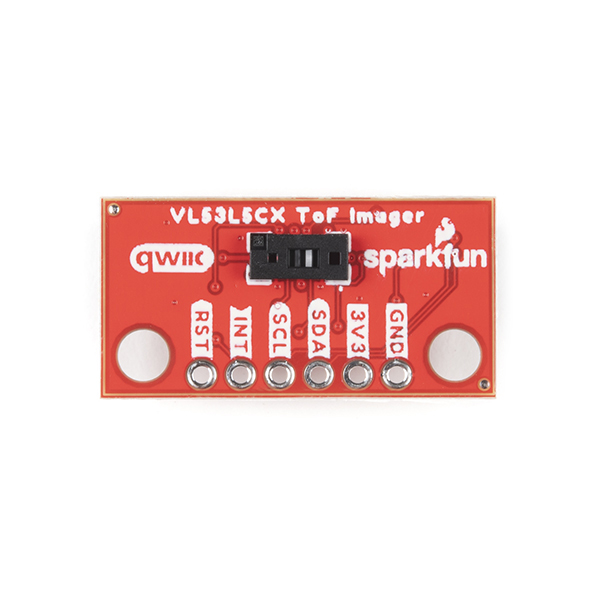

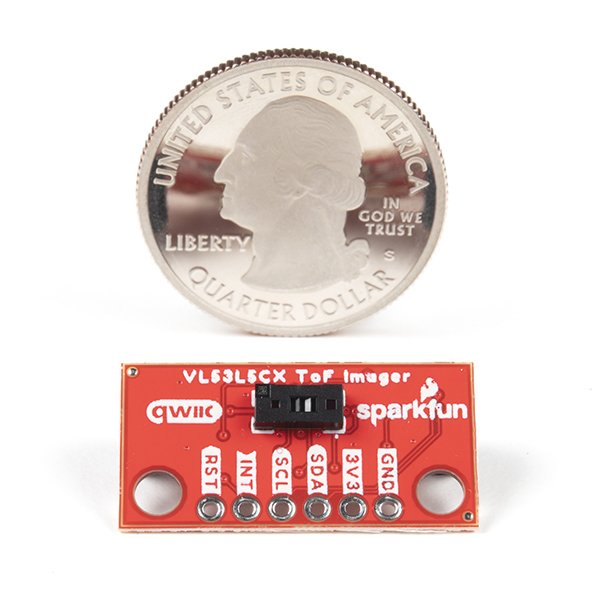

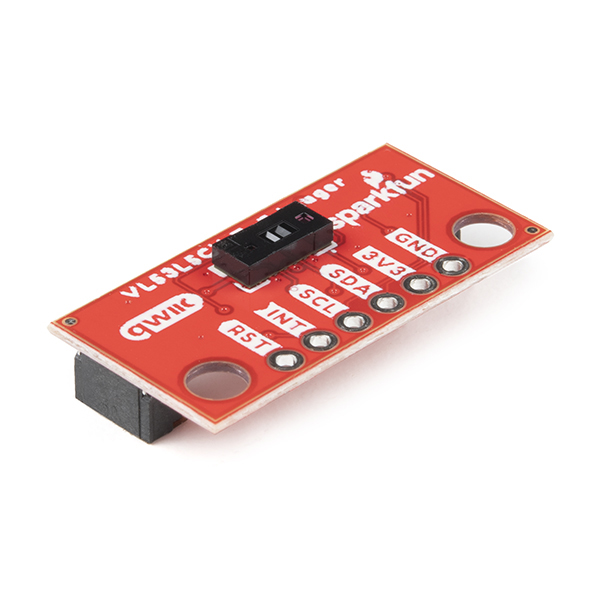

SparkFun VL53L5CX 迷你 ToF 成像儀模組 是一種最先進的 64 像素飛行時間 (ToF) 四米測距傳感器,圍繞 STMicroelectronics 的 VL53L5CX 構建。這個迷你版的尺寸是我們標準Qwiic VL53L5CX板的一半大小(0.5 英寸 x 1 英寸)。此外,我們將 Qwiic 連接器以垂直方向移動到電路板的背面。這些設計更改有利於 VL53L5CX 傳感器從外殼或機箱向外面向的安裝應用,並使您的 Qwiic 電纜保持整潔。

VL53L5CX 芯片集成了 SPAD 陣列、物理紅外濾光片和衍射光學元件 (DOE),可通過一系列蓋玻片材料在各種環境照明條件下實現最佳測距性能。利用我們方便的 Qwiic 系統,無需焊接即可將其連接到系統的其餘部分。然而,我們仍然打破了一些 0.1 英寸間距的引腳,以防您更喜歡使用麵包板。

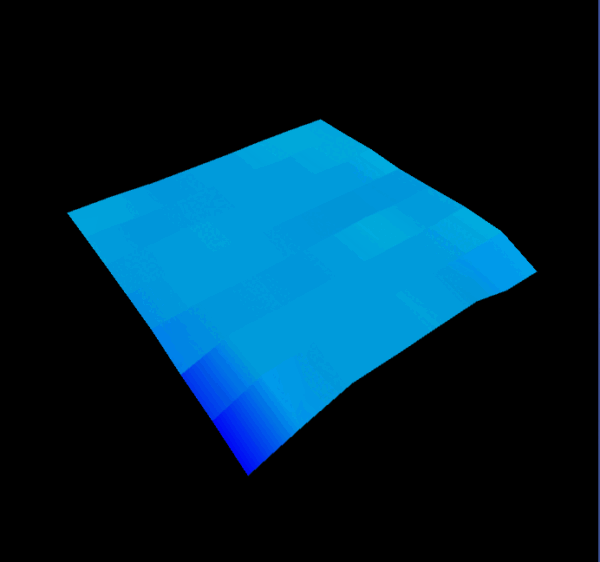

可以在所有 64 個區域上進行高達 4000 毫米的多區域距離測量,具有 63° 對角線寬視場,讀取頻率高達 15Hz。由於 ST Histogram 專利算法,VL53L5CX 能夠檢測 FoV 內的不同物體。直方圖還提供了對超過 60 厘米的蓋玻片串擾的免疫力。

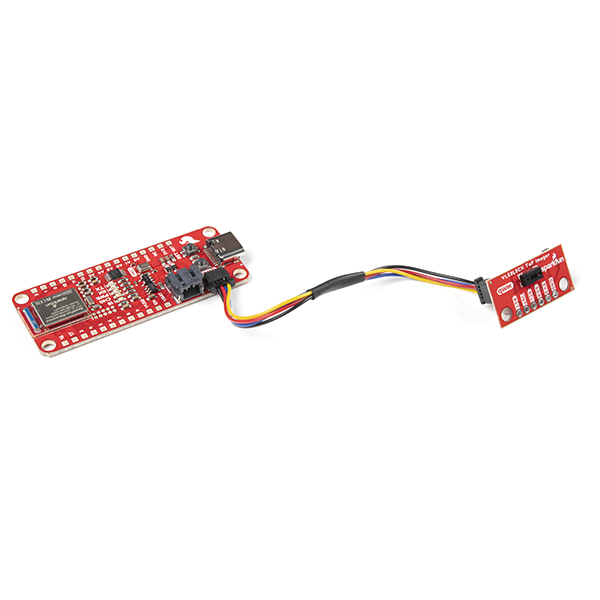

Qwiic Mini ToF Imager 是 3D 房間映射、機器人障礙物檢測、手勢識別、物聯網、激光輔助自動對焦和 AR/VR 增強的理想選擇;該傳感器上的 Qwiic 連接器使集成變得容易。

特色與規格

  • 具有 4×4 或 8×8 獨立區域的多區域測距輸出
  • 具有可編程中斷閾值的自主低功耗模式以喚醒主機
  • 最大400cm測距
  • 60Hz 幀率能力
  • 發射器:940nm不可見光垂直腔面發射激光器(VCSEL)和集成模擬驅動器
  • 在發射器和接收器上使用衍射光學元件 (DOE) 的 63° 對角方形 FoV
  • 工作電壓:3.3V
  • 2 C 地址:0x52
  • 2 個垂直 Qwiic 連接器
  • 尺寸 – 0.5 英寸。x 1 英寸。

文件與資源下載

The SparkFun Qwiic Mini ToF Imager is a state of the art, 64 pixel Time-of-Flight (ToF) four meter ranging sensor built around the VL53L5CX from STMicroelectronics. This Mini version has a footprint that is half the size (0.5in. x 1in.) of our standard Qwiic VL53L5CX board. Additionally, we moved the Qwiic connectors to the back of the board in a vertical orientation. These design changes favor mounting applications where the VL53L5CX sensor faces outward from an enclosure or chassis, and keeps your Qwiic cables cleanly tucked away.

The VL53L5CX chip integrates a SPAD array, physical infrared filters, and diffractive optical elements (DOE) to achieve the best ranging performance in various ambient lighting conditions with a range of cover glass materials. Utilizing our handy Qwiic system, no soldering is required to connect it to the rest of your system. However, we still have broken out some 0.1in.-spaced pins in case you prefer to use a breadboard.

Multi zone distance measurements up to 4000mm are possible across all 64 zones with a wide 63° diagonal field-of-view which can be read up to 15Hz. Thanks to ST Histogram patented algorithms, the VL53L5CX is able to detect different objects within the FoV. The Histogram also provides immunity to cover glass crosstalk beyond 60cm.

The Qwiic Mini ToF Imager is ideal for 3D room mapping, obstacle detection for robotics, gesture recognition, IoT, laser-assisted autofocus, and AR/VR enhancement; the Qwiic connector on this sensor makes integration easy.

Features

  • Multizone ranging output with either 4×4 or 8×8 separate zones
  • Autonomous Low-power mode with interrupt programmable threshold to wake up the host
  • Up to 400cm ranging
  • 60Hz frame rate capability
  • Emitter: 940nm invisible light vertical cavity surface emitting laser (VCSEL) and integrated analog driver
  • 63° diagonal square FoV using diffractive optical elements (DOE) on both transmitter and receiver
  • Operating Voltage: 3.3V
  • I2C Address: 0x52
  • 2x Vertical Qwiic Connectors
  • Dimensions – 0.5in. x 1in.
