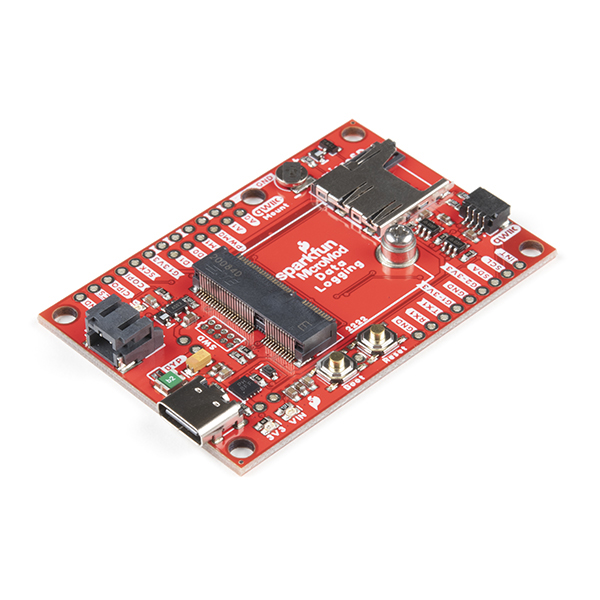

SparkFun MicroMod Data Logging Carrier Board 功能載板 MicroMod 數據紀錄載板 內建 RTC

描述

SparkFun MicroMod Data Logging Carrier Board 功能載板 MicroMod 數據紀錄載板 內建 RTC

SparkFun MicroMod Data Logging Carrier Board 功能載板 使用MicroMod系統提供了高度可定制的低功耗數據記錄平台，可讓您選擇自己的處理器與載板配對。數據記錄載板通過Qwiic連接器或標準的0.1英寸間隔的PTH引腳以及用於通過這些通信協議記錄來自外圍設備的數據的SPI和串行UART連接，為I ² C斷開連接。

SparkFun MicroMod Data Logging Carrier Board 功能載板 允許您控制板上的Qwiic連接器和專用於非Qwiic外圍設備的專用3.3V電源軌的電源，因此您可以選擇何時為監視數據的外圍設備供電。它還具有用於單節鋰離子電池的充電電路以及單獨的RTC電池備用電路，以維持處理器板上實時時鐘電路的電源。

特色

• M.2 MicroMod連接器
• microSD插槽
• USB-C連接器
• 3.3V 1A穩壓器
• Qwiic連接器
• 啟動/重置按鈕
• RTC備用電池和充電電路
• 獨立的3.3V穩壓器，用於Qwiic總線和外圍設備
  • 由處理器板上的數字引腳控制，以啟用低功耗睡眠模式
• 包括菲利普斯＃0 M2.5x3mm螺釘

文件與資源

MicroMod數據記錄載體文檔：

• 原理圖
• 鷹文件
• 聯播指南

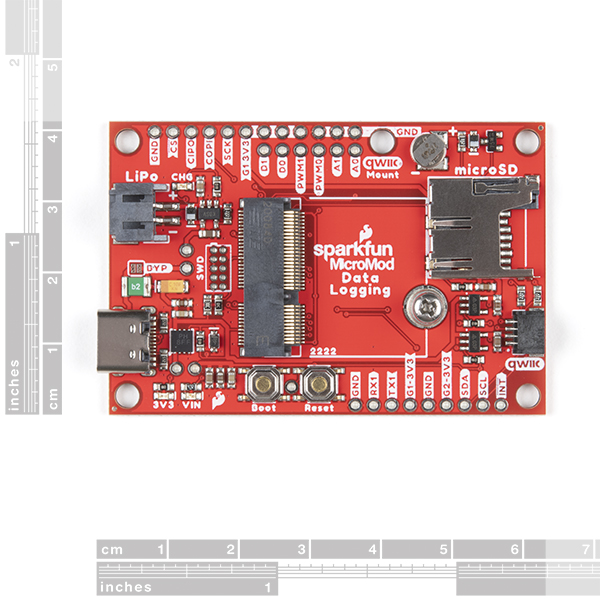

• 板子尺寸
• 硬件GitHub存儲庫

MicroMod文檔：

• MicroMod入門
• 使用MicroMod設計
• MicroMod信息頁面
• MicroMod論壇

SparkFun MicroMod Data Logging Carrier Board

The SparkFun MicroMod Data Logging Board offers a highly customizable, low-power data logging platform using the MicroMod system allowing you to choose your own Processor to pair with the Carrier Board. The Data Logging Carrier Board breaks out connections for I²C via a Qwiic connector or standard 0.1″-spaced PTH pins along with SPI and serial UART connections for logging data from peripheral devices using those communication protocols.

The Data Logging Carrier Board allows you to control power to both the Qwiic connector on the board and a dedicated 3.3V power rail for non-Qwiic peripherals so you can pick and choose when to power the peripherals you are monitoring the data from. It also features a charging circuit for single-cell Lithium-ion batteries along with a separate RTC battery-backup circuit to maintain power to a real-time clock circuit on your Processor Board.

Features

• M.2 MicroMod Connector
• microSD socket
• USB-C Connector
• 3.3V 1A Voltage Regulator
• Qwiic Connector
• Boot/Reset Buttons
• RTC Backup Battery & Charge Circuit
• Independent 3.3V regulators for Qwiic bus and peripheral add-ons
  • Controlled by digital pins on Processor Board to enable low power sleep modes
• Phillips #0 M2.5x3mm screw included
