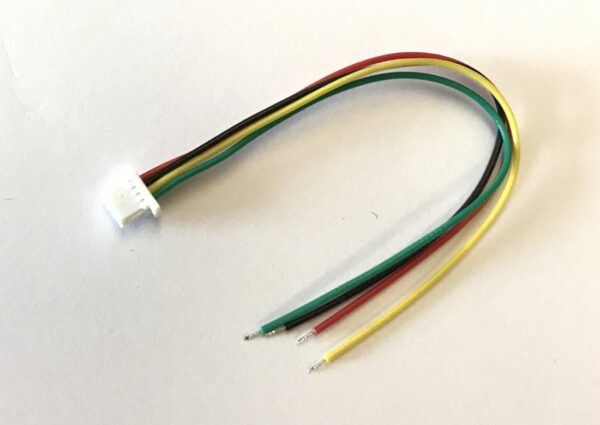

SH1.0mm 4P 28AWG 單頭電子端子線長 10CM 連接線 5 條一包 相容 QWIIC

描述

SH1.0mm 4P 單頭電子端子線 長 10CM 連接線 5 條一包 相容 QWIIC

SPECIFICATIONS :

• – Application : Wire to Board
• – Series : SH Connector
• – Pitch : 1.0mm
• – Positions : 4
• – Gender : Male Header , Female Housing
• – PC Board Mounting Direction : Top Entry
• – Number of Rows : 1
• – Applicable wire : AWG #28
• – Wire Length : 100mm
• – End of wire Material : Solder bare wire
• – Voltage rating : 50V DC/AC
• – Current rating : 1.0A AC, DC
• – Withstand voltage : 500 VAC/minute (effective value)
• – Working Temperature : -25°C to +85°C
• – Insulation resistance : ≥ 100M Ω
• – Contact resistance : ≤ 0.03 Ω
