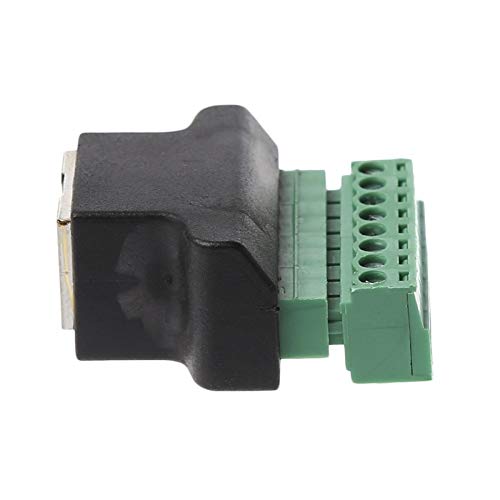

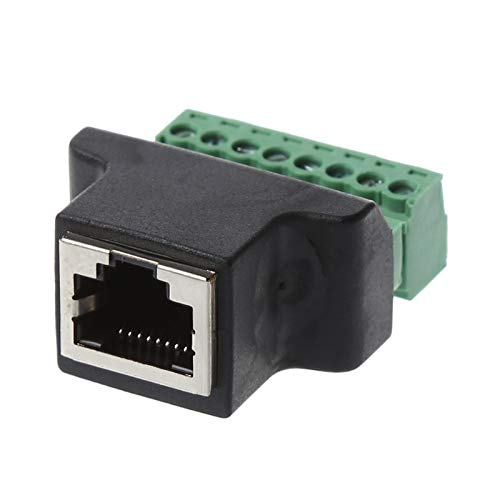

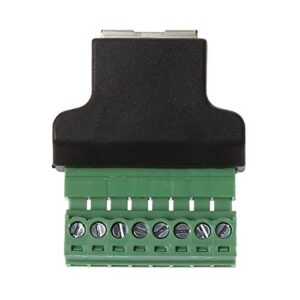

RJ45 插座轉8位元端子台 支援軌道 DIN35 RJ45 轉 8pin端子
RJ45母臥式插座轉8pin端子 用於固定數字DVR的接線端子轉換器適配器，RJ45A RJ45至螺絲端子適配器的接線符合EIA / TIA 568B佈線標準，適用於結構化佈線。有關UTP導線如何落在螺釘端子側並根據每個輸入通道進行標記的詳細信息，請參閱接線/引腳圖。
- 連接器：母RJ45轉螺釘端子

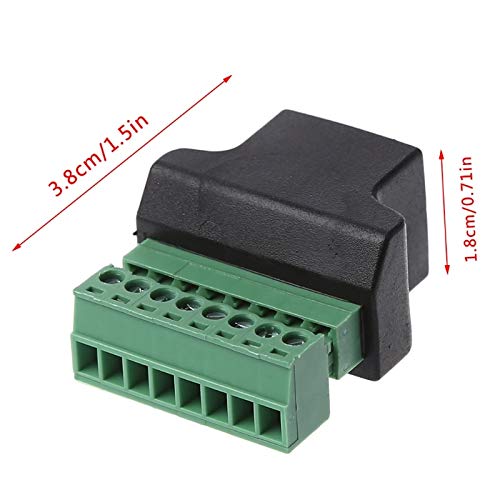

- 尺寸：38mm * 32mm * 17mm
- 與具有RJ45視頻端口的集線器配合使用
Ethernet RJ45 Female To 8-Pin Screw Terminal Connector Adapter For CCTV Digital DVR
100% High quality and Brand New，RJ45 Female Jack To Screw Terminal Block Converter Adapter for Digital DVR。The RJ45A RJ45 to Screw Terminal adaptor is wired in accordance with the EIA/TIA 568B wiring standard for structured cabling.
- Please refer to the wiring/pinout diagrams for details as to how UTP conductors are landed on the screw terminal side and marked according to each input channel.
- Connectors: Female RJ45 to-screw-terminals
- Dimenstion: 38mm*32mm*17mm
- Use with Hubs that have RJ45 video ports
- Heavy duty design assures reliable connections
