MyoWare Muscle Sensor 肌電感測器模組 肌肉信號傳感 SparkFun 原裝進口

描述

MyoWare Muscle Sensor 肌電感測器模組 肌肉信號傳感 SparkFun 原裝進口

MyoWare Muscle Sensor 肌電感測器模組 用我們的肌肉來控制事物是我們大多數人習慣於這樣做的方式。我們按下按鈕，拉動拉桿，移動操縱桿……但如果我們可以將按鈕，操縱桿和操縱桿拿出來，我們該怎麼辦？這是MyoWare肌肉傳感器，一種來自Advancer Technologies的Arduino驅動的全功能肌電圖（EMG）傳感器。MyoWare板通過測量肌肉的過濾和矯正電活動來起作用; 根據所選肌肉的活動量輸出0V電壓，其中Vs表示電源電壓。這很簡單：堅持幾個電極（不包括），讀出電壓並彎曲一些肌肉！

MyoWare肌肉傳感器是舊式肌肉傳感器的最新版本，現在採用了新的可穿戴設計，可讓您將生物醫學傳感器墊直接連接到電路板本身，擺脫那些討厭的電纜。這款新電路板還包含一系列其他新功能，包括+ 3.1V至+ 5V的單電源電壓，RAW EMG輸出，極性保護電源引腳，指示器LED和（最後）開/關開關。此外，我們還開發了一些可以連接到Myoware肌肉感應器的護罩（Cable，Power和Proto），以幫助提高其多功能性和功能性！

通過檢測其電勢來測量肌肉活動，被稱為肌電圖（EMG），傳統上已被用於醫學研究。然而，隨著不斷縮小但更強大的微控制器和集成電路的出現，EMG電路和傳感器已進入各種控制系統。

注意：生物醫學傳感器墊可以在下面的推薦產品部分找到，可以單獨購買。

MyoWare Muscle Sensor

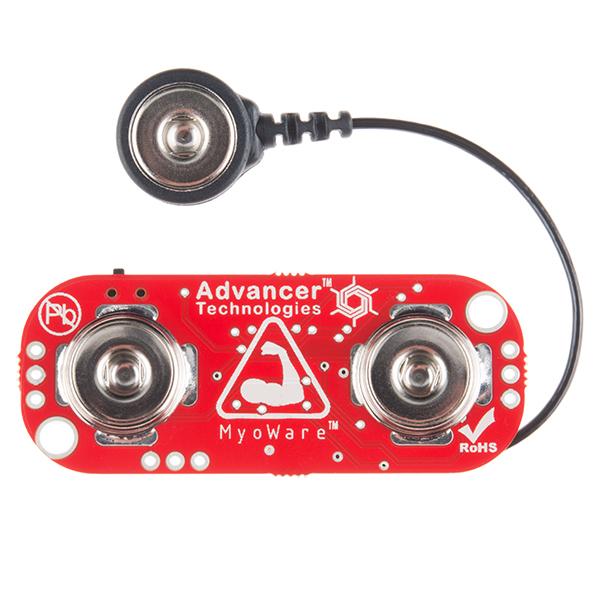

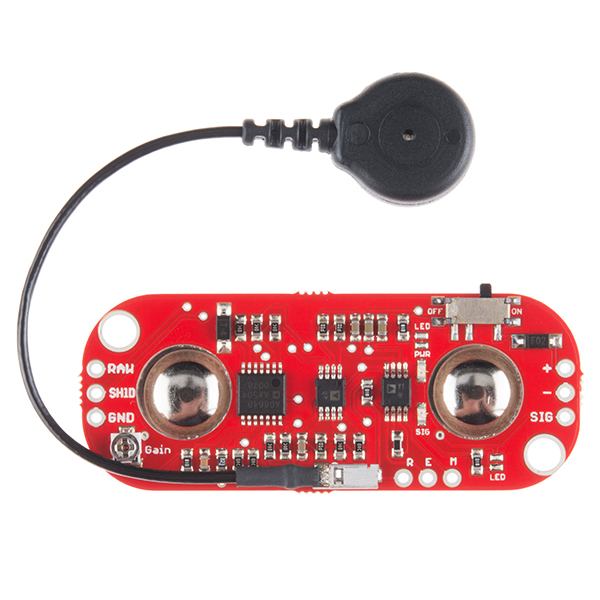

Using our muscles to control things is the way that most of us are accustomed to doing it. We push buttons, pull levers, move joysticks… but what if we could take the buttons, levers and joysticks out of the equation? This is the MyoWare Muscle Sensor, an Arduino-powered, all-in-one electromyography (EMG) sensor from Advancer Technologies. The MyoWare board acts by measuring the filtered and rectified electrical activity of a muscle; outputting 0-Vs Volts depending the amount of activity in the selected muscle, where Vs signifies the voltage of the power source. It’s that easy: stick on a few electrodes (not included), read the voltage out and flex some muscles!

The MyoWare Muscle Sensor is the latest revision of the Muscle Sensor of old, now with a new wearable design that allows you to attach biomedical sensor pads directly to the board itself getting rid of those pesky cables. This new board also includes a slew of other new features including, single-supply voltage of +3.1V to +5V, RAW EMG output, polarity protected power pins, indicator LEDs, and (finally) an On/Off switch. Additionally, we have developed a few shields (Cable, Power, and Proto) that can attach to the Myoware Muscle Sensor to help increase its versatility and functionality!

Measuring muscle activity by detecting its electric potential, referred to as electromyography (EMG), has traditionally been used for medical research. However, with the advent of ever shrinking yet more powerful microcontrollers and integrated circuits, EMG circuits and sensors have found their way into all kinds of control systems.

• Wearable Design
• Single Supply
  • +2.9V to +5.7V
  • Polarity reversal protection
• Two Output Modes
  • EMG Envelope
  • Raw EMG
• Expandable via Shields
• LED Indicators
• Specially Designed For Microcontrollers
• Adjustable Gain

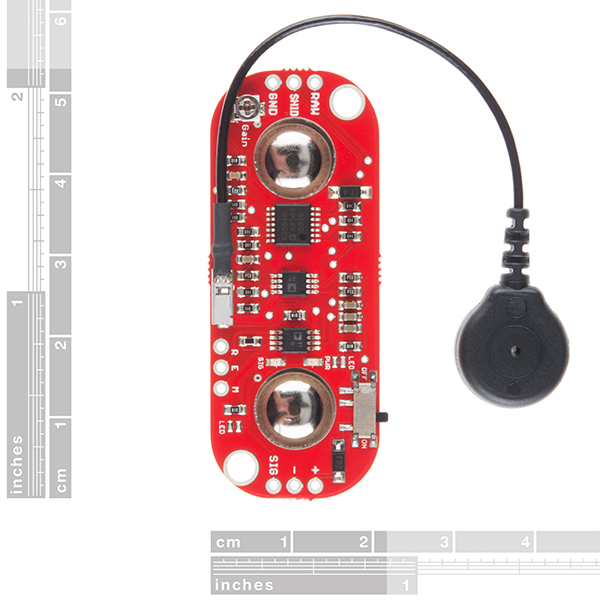

• 0.82″ x 2.06″
