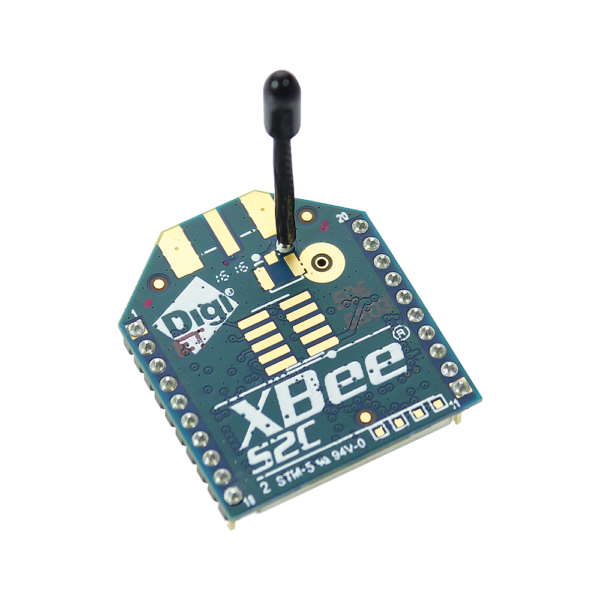

Digi XBee S2C RF 模組 Wire Antenna 3.1mW 戶外連線距離可達 1200m Digi 原裝進口

描述

Digi XBee S2C RF 模組 Wire Antenna 3.1mW 戶外連線距離可達 1200m Digi 原裝進口

Digi XBee S2C RF 模組 是低成本、容易部署的 802.15.4 模組，為裝置和感測器提供關鍵端點連線能力。Digi International 的 XBee RF 模組為 OEM 提供多種平台共用的常見覆蓋區，包含多點和 ZigBee^®／網狀拓撲以及 2.4 GHz 和 900 MHz 解決方案。 採用 XBee 的 OEM 能依據動態應用需求進行 XBee 的替換，僅需最少開發、低風險以及更短產品上市時間。

XBee 802.15.4 RF 模組，非常適合需要低時延及可預測通訊計時的應用。 XBee 802.15.4 產品提供快速、可靠的通訊，採用點對點、端對端、多點／星狀配置，達到輕鬆耐用的端點連接。 無論是部署純纜線替代品，進行簡易序列通訊，或作為更複雜的軸輻式網路感測器的一部份，XBee 802.15.4 RF 模組都可發揮最大效能並簡化開發。 XBee 802.15.4 模組無縫介接相容閘道器、元件配接器以及範圍擴充器，為開發人員提供真正超越極限的連線。

更新的 XBee S2C 802.15.4 模組以 Silicon Labs 的 EM357 SoC 打造，達到更低功耗，且支援空中韌體更新，若有需求，亦提供至 DigiMesh® 或 ZigBee 網狀通訊協定的升級路徑。Digi International 亦提供無線連線套件，能以實作學習如何使用 XBee RF 模組，進行元件連線和感測器網路連接。

XBee S2C 802.15.4 RF 模組優點

• 簡易的開箱即用 RF 通訊，無需進行配置
• 點對多點網路拓撲
• 2.4 GHz 適用於全球部署
• 多種 RF 模組共用 XBee 覆蓋區
• 業界領先的睡眠電流：低於 1 µA
• 透過 UART、SPI 或空中 (OTA) 進行韌體升級
• 可雙向轉移至 DigiMesh 和 ZigBee PRO 通訊協定

文件與資源 DataSheet 下載

XBee 802.15.4 through-hole module w/ wire antenna

Digi XBee RF modules provide OEMs with a common footprint shared by multiple platforms, including multipoint and ZigBee/ Mesh topologies, and both 2.4 GHz and 900 MHz solutions. OEMs deploying the Digi XBee can substitute one Digi XBee for another, depending upon dynamic application needs, with minimal development, reduced risk and shorter time-to-market.

Digi XBee 802.15.4 RF modules are ideal for applications requiring low latency and predictable communication timing. Providing quick, robust communication in point-to-point, peerto-peer, and multipoint/star configurations, Digi XBee 802.15.4 products enable robust end-point connectivity with ease. Whether deployed as a pure cable replacement for simple serial communication, or as part of a more complex hub-and-spoke network of sensors, Digi XBee 802.15.4 RF modules maximize performance and ease of development.

Digi XBee 802.15.4 modules seamlessly interface with compatible gateways, device adapters and range extenders, providing developers with true beyond-the-horizon connectivity. The updated Digi XBee S2C 802.15.4 module is built with the SiliconLabs EM357 SoC and offers improved power consumption, support for over-the-air firmware updates, and provides an upgrade path to DigiMesh® or ZigBee® mesh protocols if desired.

• Simple, out-of-the-box RF communications, no configuration needed
• Point-to-multipoint network topology
• 2.4 GHz for worldwide deployment
• Common Digi XBee footprint for a variety of RF modules
• Industry leading sleep current of sub 1uA
• Firmware upgrades via UART, SPI or over the air
• Migratable to DigiMesh and ZigBee PRO protocols and vice-versa
