DC 不斷電備用電池切換模組 大功率停電自動切換電池供電 12V150W

描述

DC 不斷電備用電池切換模組 大功率停電自動切換電池供電 12V150W

該模塊用於蓄電池應急開關。
採用優質工業繼電器，有效控制電流可達12A。在12V的控制下，功率可以達到150W。它廣泛用於孵化器，計算機，網絡等。

參數：

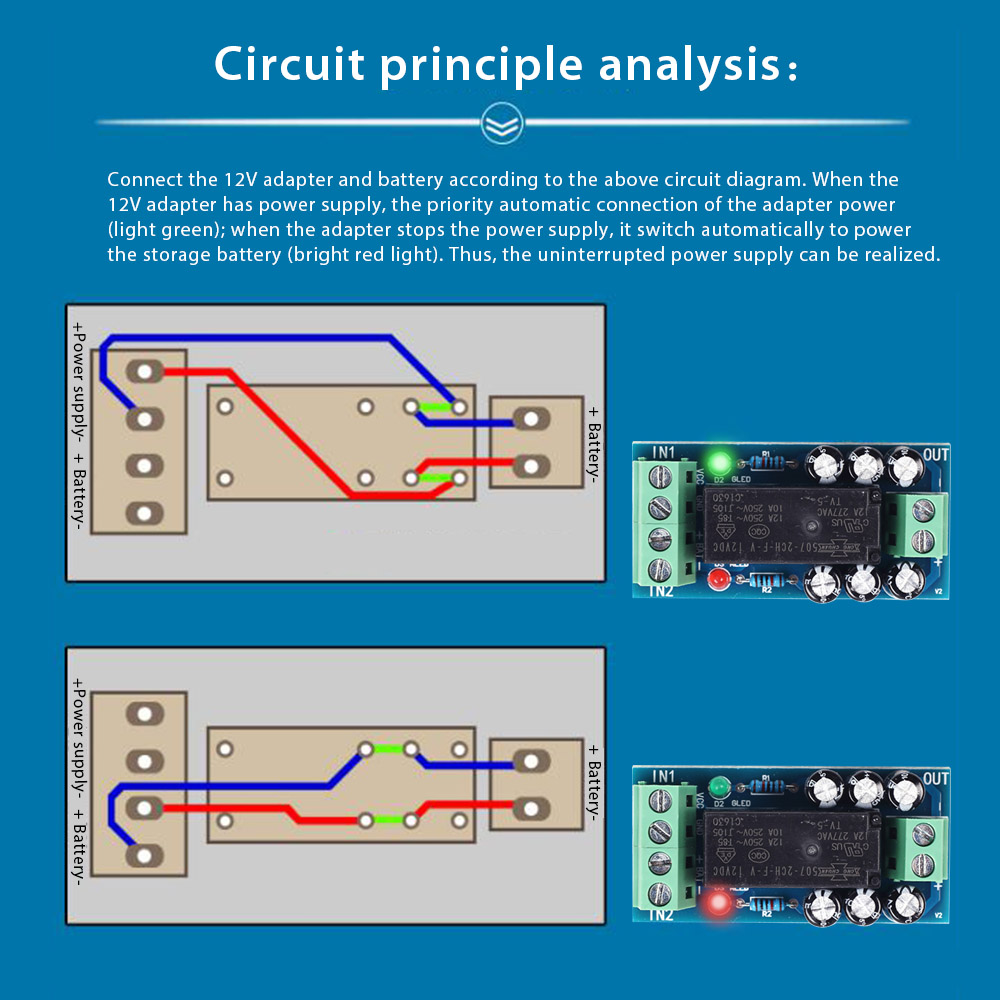

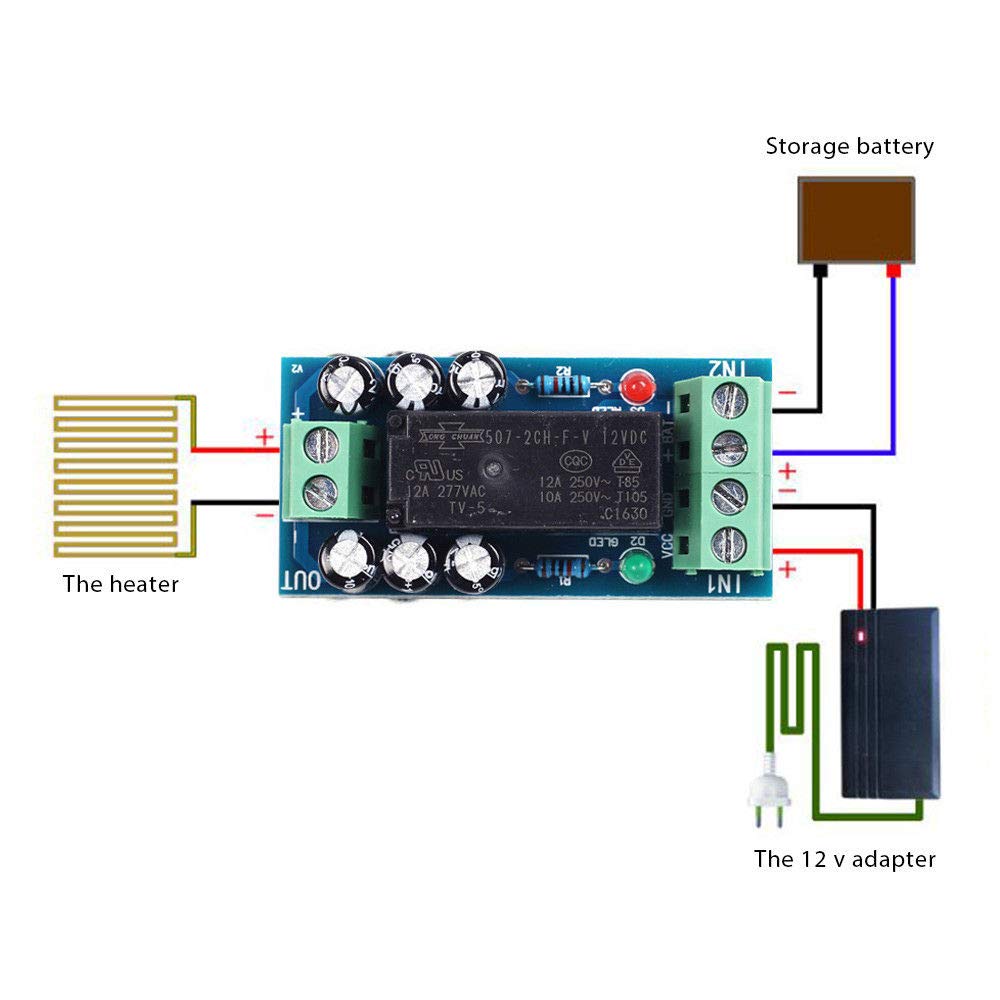

工作原理圖：

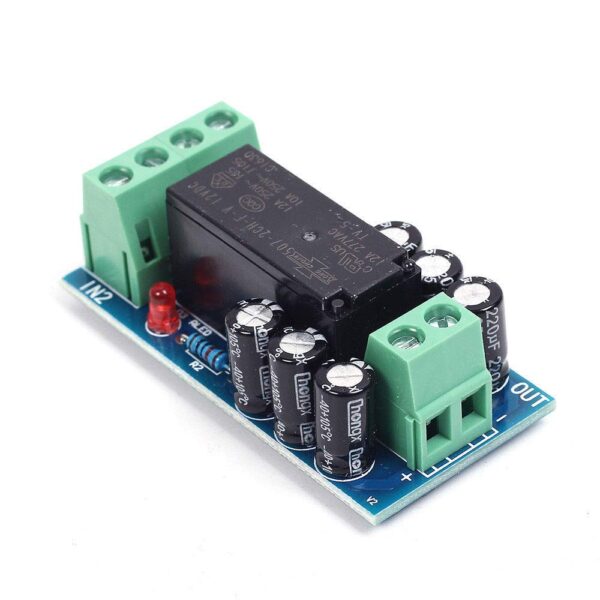

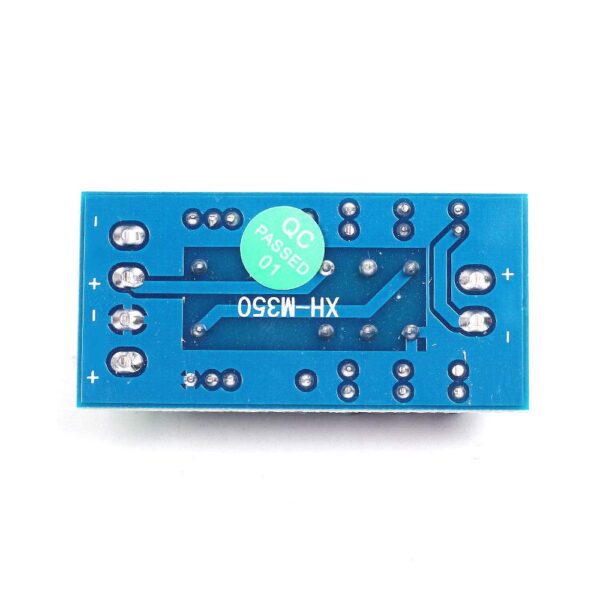

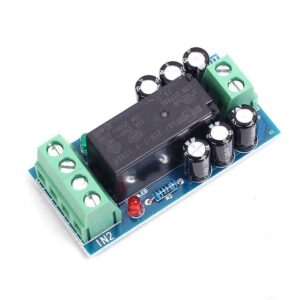

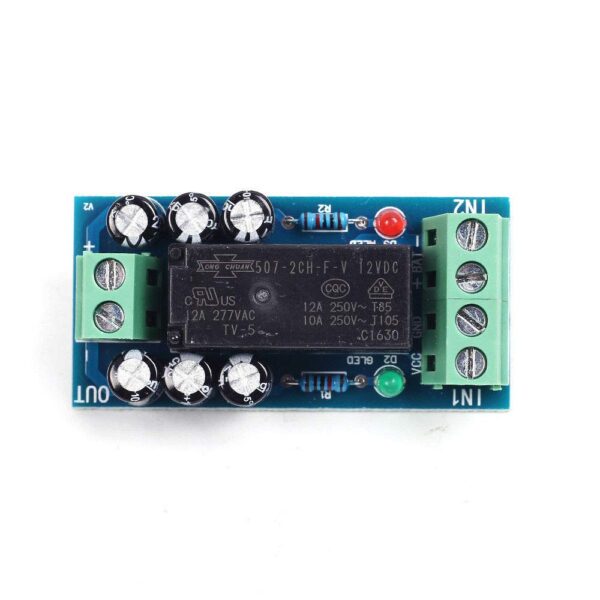

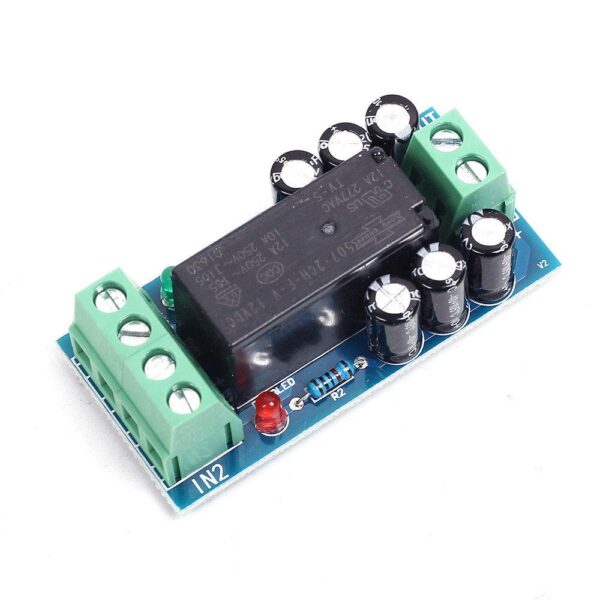

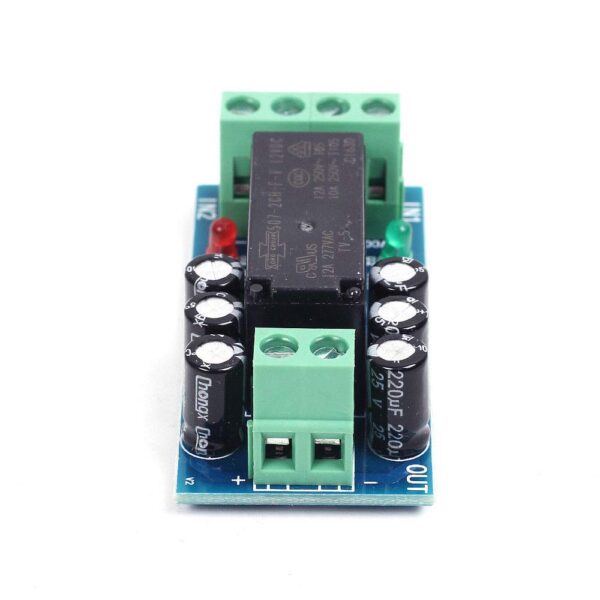

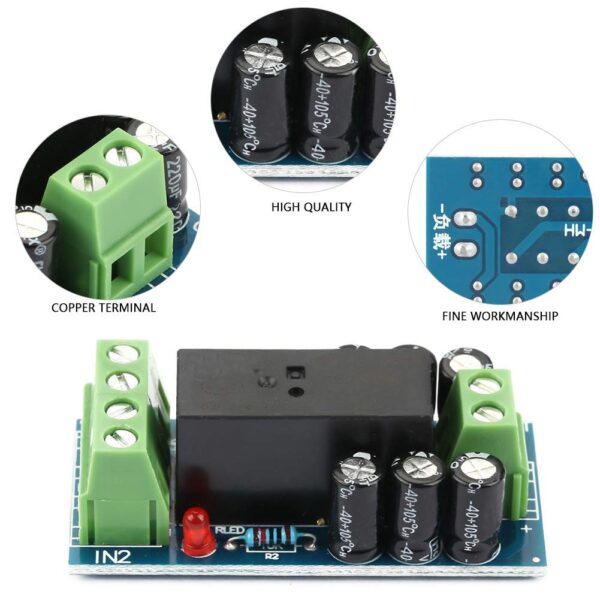

12V 150W 12A Backup Alternate Battery Switching Module high Power Board Automatic Switch Precise XH-M350

• This module is for storage battery emergency switch.
• It adopts the high quality industrial relay and the effective control current can reach 12A. In control of 12V, power can reach 150W. It is widely used in incubators, computers, networks and so on.
• Control voltage: DC12V.
• Control current: 12A.
• Support power: 150W.

Specifications:

Power supply voltage: DC4.5-6V (micro USB connector)
Operating Current: less than 70mA
Discharge voltage: 1.00V-15.00V 0.01V resolution
Termination voltage range: 0.5-11.0V
Supported by current: 3.000A 0.001A resolution

Instructions:

1. The first test should be fully charged battery.
2. Connect the battery to be tested positive to positive input, a negative input to the negative, can not be reversed (with load reversal may damage the circuit)! Load connected to the output of the positive and negative output, to work through the tester micro USB power supply (not available desktop or laptop USB powered), then the battery voltage.
3. Direct start test need only one press of the “”OK”” button, the tester can automatically develop an appropriate termination voltage of the battery full charge voltage, and will start flashing after the test three times. Need to develop artificial termination voltage only when the battery voltage display state by pressing “”+”” or “”-“” buttons to modify the termination voltage display beginning with P, behind the representative voltage resolution 0.1V, set up after pressing the “”OK “”start testing.
4. After the start of the test the tester will control the load of the electronic switch is turned on, the test data shows that the process will release capacity (Ah), current discharge current (A) and battery voltage (V) between the wheel was. When the battery voltage reaches the set cut-off voltage, load control switches off the tester display data stays in capacity (Ah) and above and the corresponding indicator flashes quickly together, now displays the actual capacity of the battery is discharging capacity, about the press “”OK”” to terminate flashing allows stable data display, press again “”OK”” button to return to the power-on state can just replace the battery test the next section.
