Arduino LCD Keypad Shield LCD1602 液晶螢幕按鍵擴展板

NT$180 NT$165

9 件庫存

描述

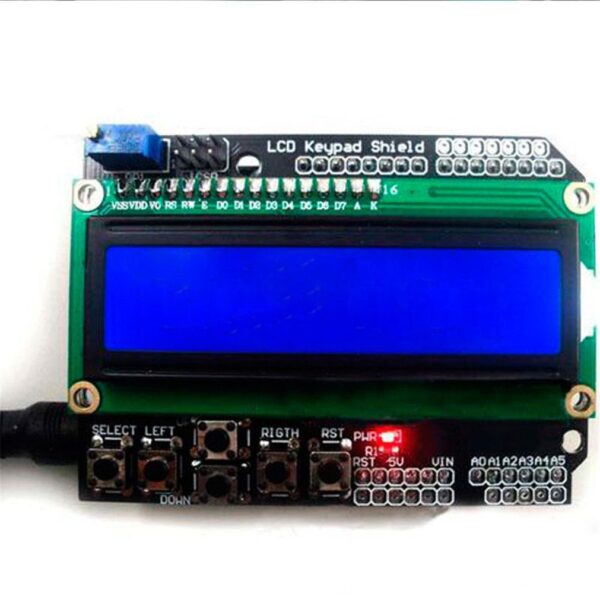

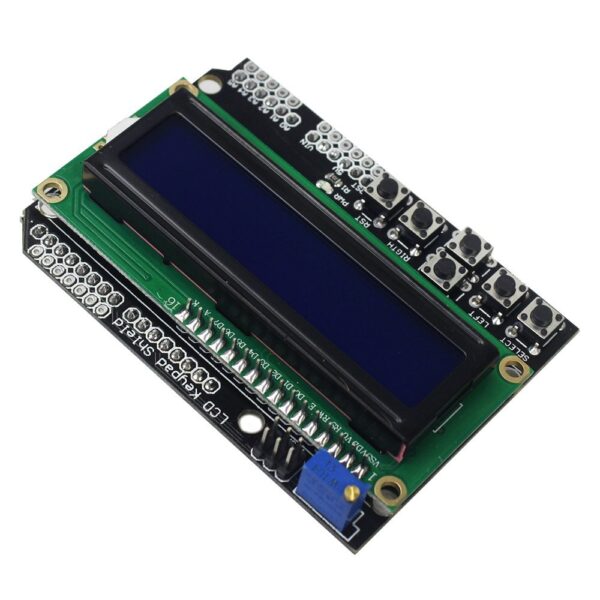

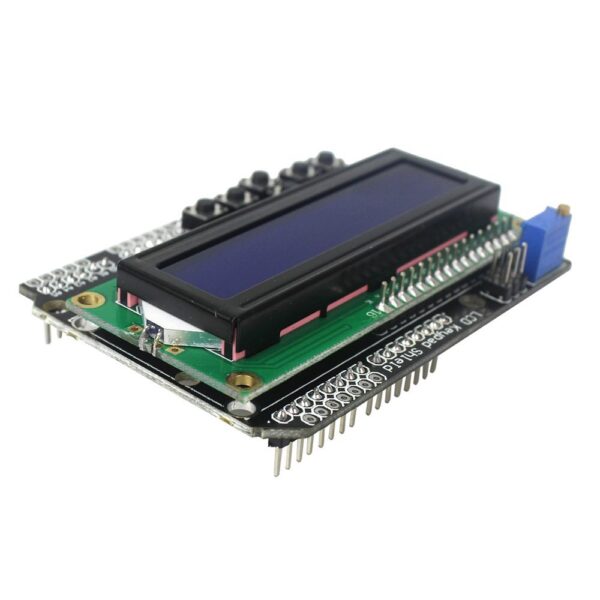

Arduino LCD Keypad Shield LCD1602 液晶螢幕按鍵擴展板

Arduino LCD1602 字符液晶擴展板,PCB沉金工藝加工,用料十足,主板採用全新優質2 行16 個字符液晶,不僅具有對比度調節旋鈕、背光燈選擇開關,還具4 個方向按鍵、1 個選擇按鍵和一個複位按鍵;這款1602 液晶擴展板真正意義上的將電路簡化,直接將此板插Arduino Duemilanove 控制器上即可.

擴展板模組的使用:

LCD Keypad Shield輸入輸出擴展板使用2行16個字元液晶,具有對比度調節和背光燈,使用1個類比埠口便完成5個按鍵的輸入,1個重定按鍵,未使用的IO口都擴展出來備用,充分利用IO口。佔用數字埠:PIN4(DB4),5(DB5),6(DB6),7(DB7),8(RS),9(E),10(背光控制),類比按鍵埠A0。

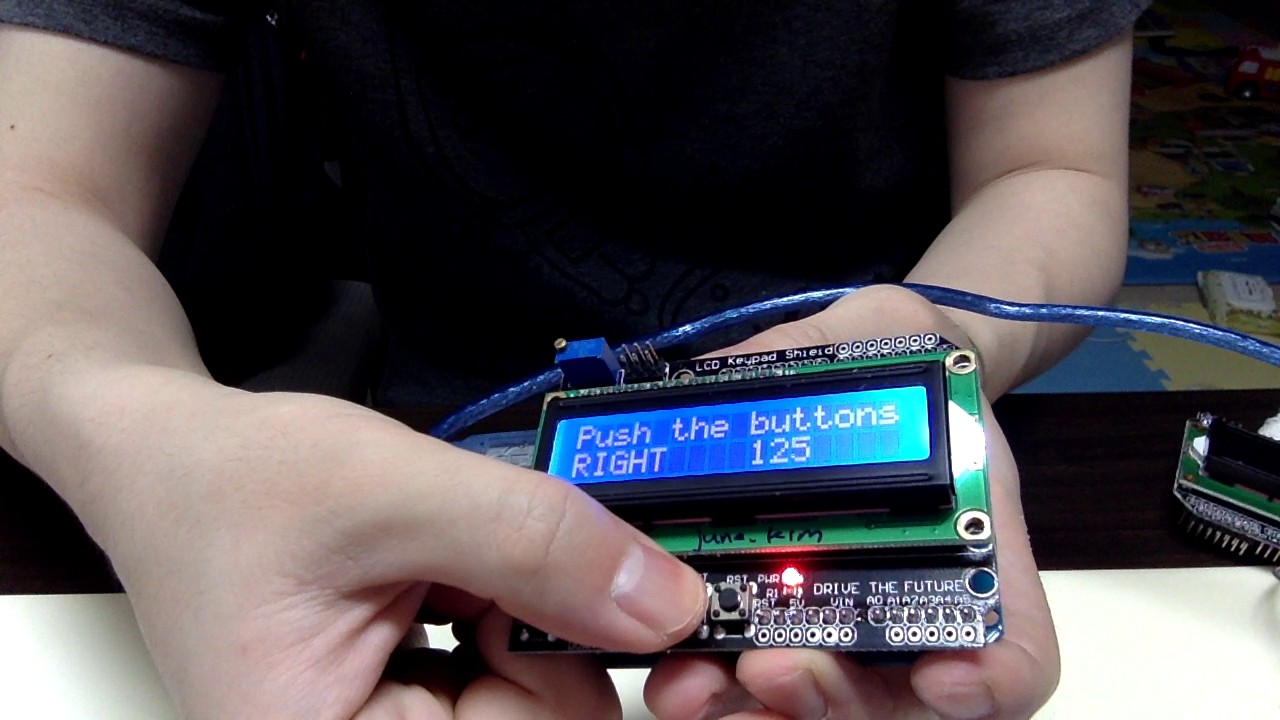

將LCD Keypad Shield插接到Arduino uno 控制器上,接著編譯下面的一個測試程序再下載到Arduino中,初次使用LCD Keypad Shield,先觀察LCD有沒有顯示字符,如果沒有顯示字符那可能是對比度不正確,可以使用一字起子調節RP1(順時針旋轉),調到出現清晰地字符即可。

  1. 顯示容量:16 × 2個字符
  2. 晶片工作電壓:4 . 5 — 5 . 5V
  3. 工作電流:2 . 0mA(5 . 0V)
  4. 模組最佳工作電壓:5 . 0V
  5. 字符尺寸:2 . 95 × 4 . 35(W × H)mm

Arduino LCD Keypad Shield

LCD Keypad Shield LCD1602 LCD 1602 Module

Product features

IC lcd1602-character LCD display module, a new high-quality 2 line 16 character LCD module. The contrast control knob Selector switch has a back-light and IIC communication interface
The real significance of this LCD module will simplify the circuit. Module directly into the sensor shield V5.0 sensor expansion board IIC device interface can Through the controller, you can easily identify the slogan, sensor data records.

Product description

DESCRIPTION: IC lcd1602-character LCD display module, a new high-quality 2 line 16 character LCD module not only set the contrast control knob selector switch also has a back-light and IIC communication interface. For beginners, not for the cumbersome and complex LCD driver circuit connection and a headache, the real significance of this LCD module will simplify the circuit, this module directly into the sensor shield V5.0 sensor expansion board IIC device interface can, gm 4P sensor connection cable, programmed through the controller, you can easily identify the slogan, sensor data records. Specification: product name : LCD display module a15100700ux0536 : LCD1602; working voltage : DC 5V display dot matrix : 16×2 screen color : yellow green size(approx.) : 8 x 5.8 x 1.3cm/3.1Inch x 2.3Inch x 0.51Inch(l*w*t) contrast adjust : potentiometer backlight adjust : jumper color : as picture show weight : 53G package content : 1 x LCD display module.
