特價

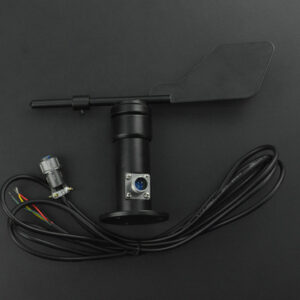

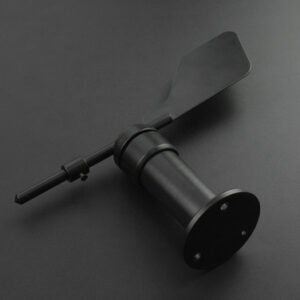

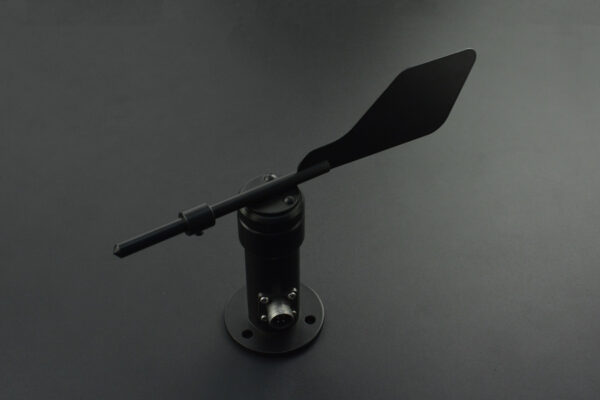

16方位鋁合金風向儀 Modbus 協議 RS485 Wind Direction Transmitter 支援樹梅派與 Arduino

NT$1,630

4 件庫存

貨號: SNA-008612 分類: , 標籤: , , , ,

描述

16方位鋁合金風向儀 Modbus 協議 RS485 Wind Direction Transmitter 支援樹梅派與 Arduino

16方位鋁合金風向儀 是用於測量風的水平風速的專業氣象儀器。其內部採用霍爾角度傳感器,傳感器的外殼和風杯均採用鋁合金材料,使用特種模具精密壓鑄工藝,尺寸公差甚小表面精度甚高,內部電路均經過防護處理,整個傳感器具有很高的強度、耐候性、防腐蝕和防水性。電纜接插件為軍工插頭,具有良好的防腐、防侵蝕性能,能夠保證儀器長期使用。選用低慣性風向標感應風向,當風吹動風杯轉動通過軸桿帶動軸芯磁鐵轉動,通過計算得到準確的風速信息。可以測量0~32.4m/s風速,具有很高的性價比,可廣泛用於氣象、海洋、環境、機場、港口、實驗室、工農業及交通等領域。

16方位鋁合金風向儀 特性

  • 體積小巧,攜帶方便,安裝簡捷
  • 鋁合金材料表面噴塑,耐腐蝕,抗高溫
  • 進口軸承,阻力小,啟動風速低
  • 測量精度高,量程寬,穩定性好
  • 結構設計合理,外觀質量佳
  • 信號傳輸距離長,抗外界干擾能力強

16方位鋁合金風向儀 技術規格

  • 測量範圍:0~32.4m/s
  • 啟動風速:0.2-0.4m/s
  • 精度:±0.3m/s
  • 引線長度:2.5m
  • 供電電壓:7-24V
  • 通訊協議:RS485接口Modbus協議

文件

尺寸

RS485 Wind Direction Transmitter

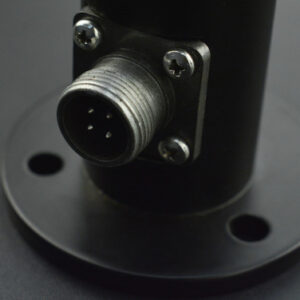

The wind direction sensor is a professional meteorological instrument used to measure horizontal wind direction. It integrates a hall sensor inside. The shell and weather vane is made of aluminum alloy material and uses special mold precision die casting process, featuring small dimension tolerance and high surface accuracy. The sensor internal circuit is protected, which makes the sensor have the properties of high strength, weather resistance, anti-corrosion, and waterproof. The cable connector adopts a corrosion-resistant military plug that ensures the long service life of the product.

A low-inertia wind vane is used to sense the wind direction. When the wind direction changes, the tail wing rotates to drive the axle magnet to rotate through the shaft, thereby obtaining accurate wind direction information. It can detect the 16 azimuths’ natural wind directions. This high-cost performance sensor can be widely used in meteorology, ocean, environment, airports, ports, laboratories, industry, agriculture, and transportation.

RS485 Wind Direction Transmitter

FEATURES

  • High measurement accuracy, fast response, good interchangeability
  • Easy to install and operate
  • High sensitivity: start-up wind speed≤0.3m/s
  • Suitable for various harsh environments, high wind resistance

SPECIFICATION

  • Measuring Range: 16 directions
  • Start-up Wind Speed: 0.3m/s
  • Lead Length: 2.5m/98.43”
  • Power Voltage: 7-24V
  • Communication Protocol: RS485 interface Modbus protocol

DOCUMENTS
